GEEM..ES-2RS
产品编号：GEEM...ES-2RS 20～120
滑动磨擦副： 钢/钢

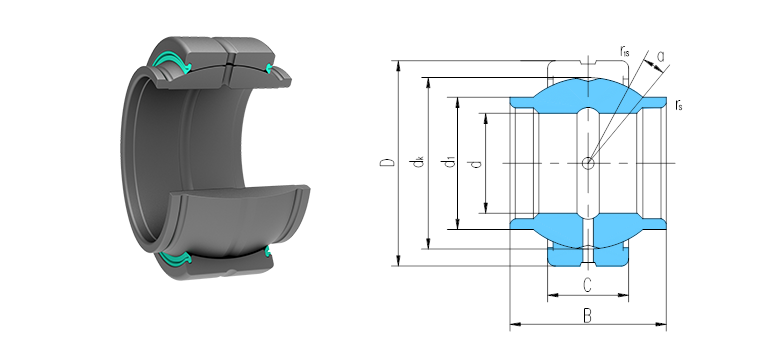

产品特点：内圈两端带伸出圆筒，外圈有一道轴向缝，内、外圈材料均为轴承钢，淬火，磷化，滑动表面涂敷二硫化钼，后置代号有-2RS为外圈两端带有密封圈。
使用温度范围：-30℃～+130℃
|
轴 承 型 号 Bearing number |
外 形 尺 寸 Dimensions mm |
额定载荷 Load ratings kN |
重 量 Weight ≈kg |
|||||||||
|
d |
D |
B |
C |
d1 max |
dk |
rs min |
r1s min |
α˚ ≈ |
动载荷 Dynamic |
静载荷 Static |
||
|
GEEM20ES-2RS |
20 |
35 |
24 |
12 |
24 |
29 |
0.3 |
0.3 |
6 |
30 |
146 |
0.072 |
|
GEEM25ES-2RS |
25 |
42 |
29 |
16 |
29 |
35.5 |
0.3 |
0.6 |
4 |
48 |
240 |
0.13 |
|
GEEM30ES-2RS |
30 |
47 |
30 |
18 |
34 |
40.7 |
0.3 |
0.6 |
4 |
62 |
310 |
0.16 |
|
GEEM35ES-2RS |
35 |
55 |
35 |
20 |
40 |
47 |
0.6 |
1 |
4 |
79 |
399 |
0.25 |
|
GEEM40ES-2RS |
40 |
62 |
38 |
22 |
45 |
53 |
0.6 |
1 |
4 |
99 |
495 |
0.34 |
|
GEEM45ES-2RS |
45 |
68 |
40 |
25 |
52 |
60 |
0.6 |
1 |
4 |
127 |
637 |
0.45 |
|
GEEM50ES-2RS |
50 |
75 |
43 |
28 |
57 |
66 |
0.6 |
1 |
4 |
156 |
780 |
0.59 |
|
GEEM60ES-2RS |
60 |
90 |
54 |
36 |
68 |
80 |
0.6 |
1 |
3 |
245 |
1220 |
1.06 |
|
GEEM70ES-2RS |
70 |
105 |
65 |
40 |
78 |
92 |
0.6 |
1 |
4 |
313 |
1560 |
1.66 |
|
GEEM80ES-2RS |
80 |
120 |
74 |
45 |
90 |
105 |
0.6 |
1 |
4 |
400 |
2000 |
2.47 |
|
GEEM90ES-2RS |
90 |
130 |
80 |
50 |
99 |
115 |
1 |
1 |
4 |
488 |
2440 |
2.88 |
|
GEEM100ES-2RS |
100 |
150 |
90 |
55 |
113 |
130 |
1 |
1 |
4 |
607 |
3030 |
4.65 |
|
GEEM120ES-2RS |
120 |
180 |
108 |
70 |
133 |
160 |
1 |
1 |
4 |
950 |
4750 |
8.44 |
